10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The high spout makes it easier to wash dishes, including large pots.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.
This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is preset to 360° but can be changed to 120°.
When you use an IKEA kitchen mixer tap, you're saving water thanks to an aerator that reduces flow while maintaining pressure. We didn't invent aerators, but think they are a good example of how we value water. It's one of Earth's most precious resources, yet very little of it is drinkable and even less is accessible. No organism can survive without it either. That's why we want to be good stewards of water at every step, whether in our factories or in your kitchen mixer tap.
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
Stock availability is updated every 30 minutes
| Type of mixer tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.5 l/min (1.5 gpm) |
| Max. static pressure | 10 bar (145.0 psi) |
| Tested up to a max. static pressure | 16 bar (232.0 psi) |
| Min. working pressure | 0.5 bar (7.25 psi) |
| Recommended working pressure | 1-5 bar (14.5-72.5 psi) |
| Max. hot water temperature | 80˚C (176˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Connection hoses length | 450 mm (17 3/4 '') |
| Hose connection size | G1/2" |
| Max. worktop thickness | 50 mm (2'') |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16”) |
| Strainer included | No |
| Third party certified by | KC|TISI|BSMI |
| Type of mixer tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.5 l/min (1.5 gpm) |
| Max. static pressure | 10 bar (145.0 psi) |
| Tested up to a max. static pressure | 16 bar (232.0 psi) |
| Min. working pressure | 0.5 bar (7.25 psi) |
| Recommended working pressure | 1-5 bar (14.5-72.5 psi) |
| Max. hot water temperature | 80˚C (176˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Connection hoses length | 450 mm (17 3/4 '') |
| Hose connection size | G1/2" |
| Max. worktop thickness | 50 mm (2'') |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16”) |
| Strainer included | No |
| Third party certified by | KC|TISI|BSMI |

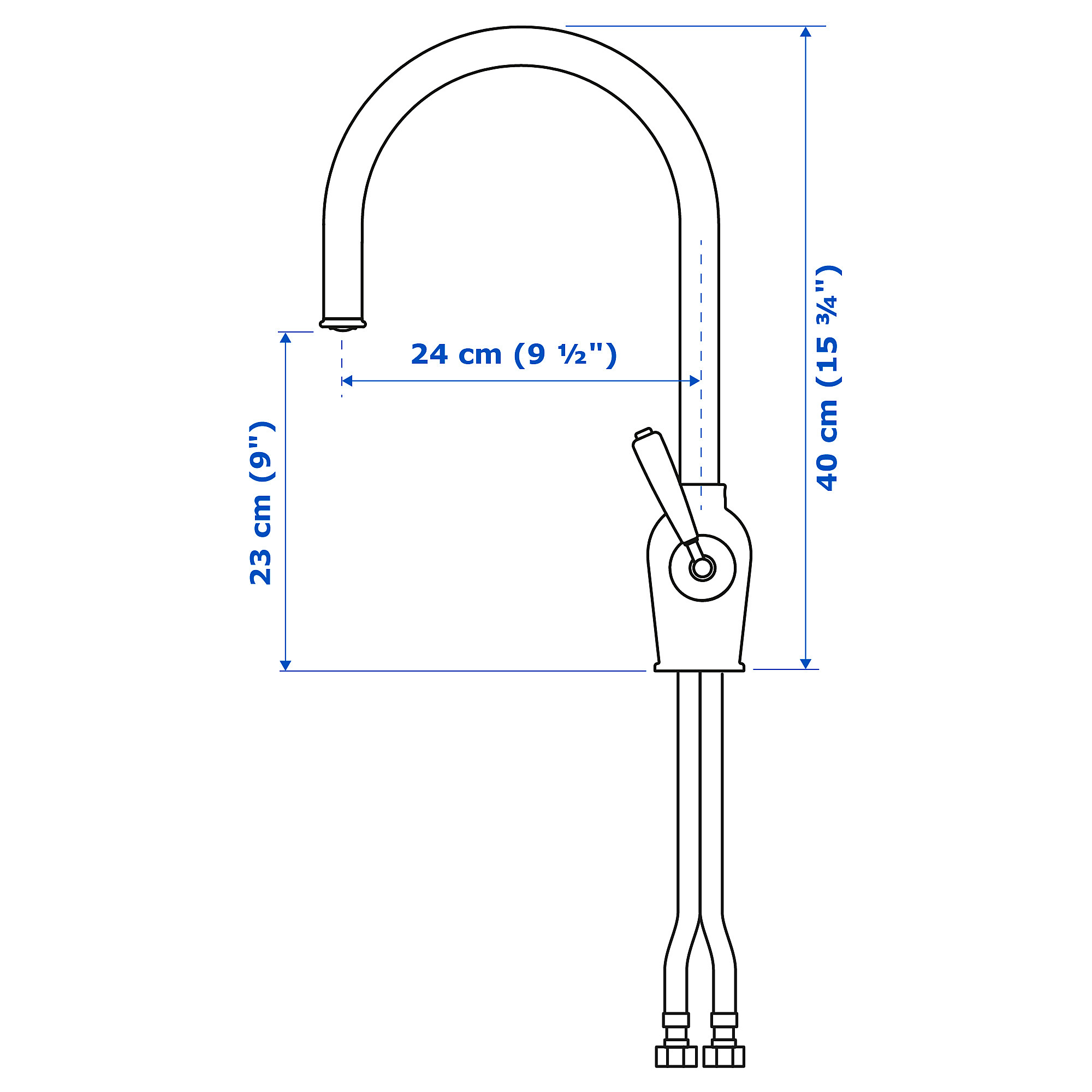

| Height: | 40 公分 |
