LAGAN

Single-lever kitchen mixer tap, chrome-plated

$ 990

298 people have bought this item

Find it in the store Select shops

In stock at Online shopping

82 in stock

Price and products in stores may be different from those online.

LAGAN - single-lever kitchen mixer tap, chrome-plated | IKEA Taiwan Online - PE749049_S2

LAGAN - single-lever kitchen mixer tap, chrome-plated | IKEA Taiwan Online - PE603006_S2

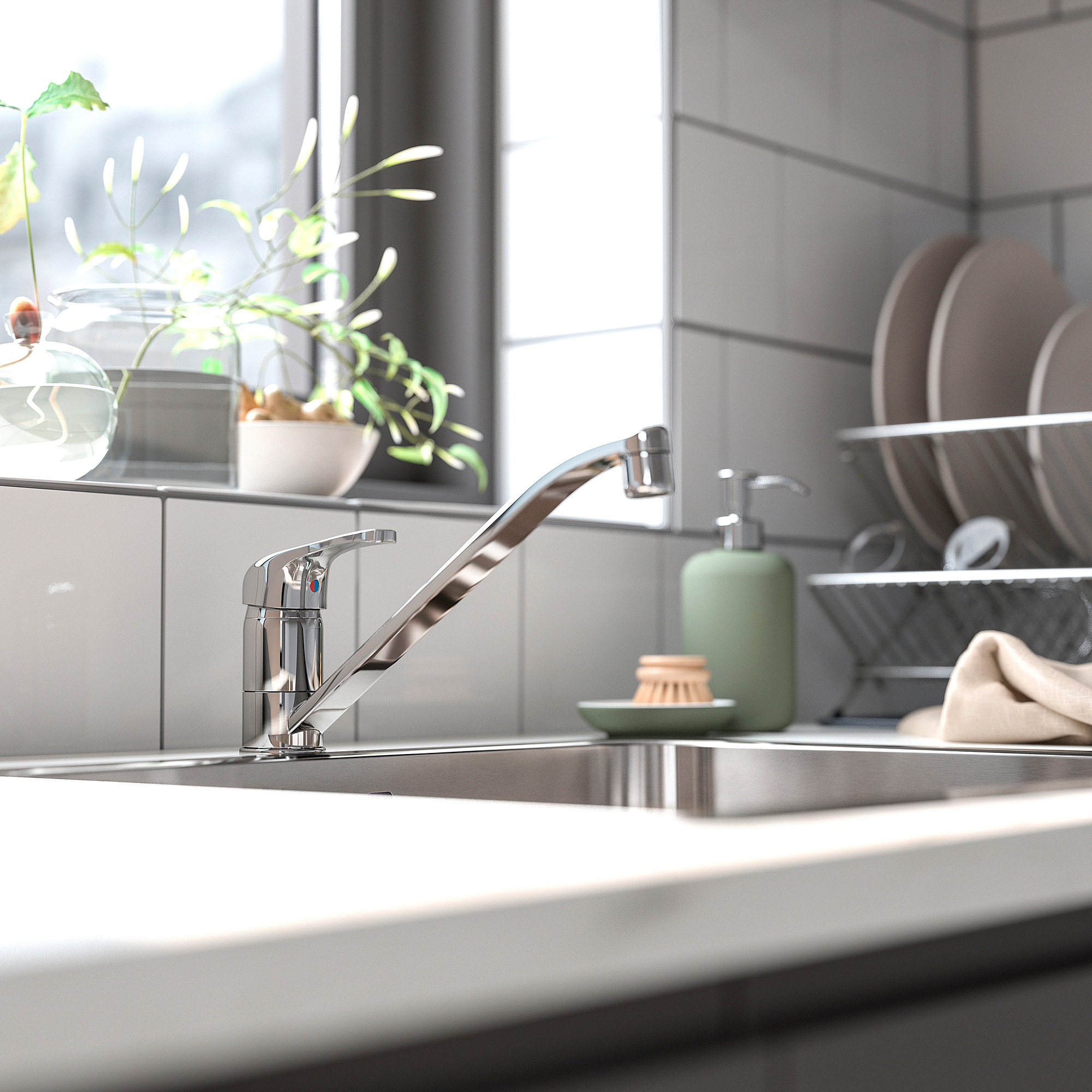

LAGAN - single-lever kitchen mixer tap, chrome-plated | IKEA Taiwan Online - PE879838_S2

LAGAN - single-lever kitchen mixer tap, chrome-plated | IKEA Taiwan Online - PE676379_S2

You save water and energy, because the mixer tap has a mechanism that reduces water flow while maintaining pressure.

Chrome-plated brass is a hard and durable surface that is easy to clean.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

Product features Product benefits Environment & materials Care instructions Assembly Instructions / Documents Store location

Key features

You save water and energy, because the mixer tap has a mechanism that reduces water flow while maintaining pressure.

Chrome-plated brass is a hard and durable surface that is easy to clean.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

Good to Know

Safety and compliance

Tested and certified according to relevant mechanical, quality and safety standards.

This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

Assembly and installation

If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.

What’s included

Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.

Connection hoses with 1/2" connection included. Connection length: 50 cm.

A tool is included that makes it easy to install the mixer tap in place.

Additional information

Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.

Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

Functions

Swivel spout: 360°.

Product measurements

Height:

16 cm

Package size & weight

Article no:

001.737.60

Packages:

Length:

30 cm

Width:

25 cm

Height:

5 cm

Weight Gross:

1.04 kg

Weight Net:

0.85 kg

Volume per package:

3.7 l

Designer

Mikael Warnhammar

Benefits

Saving water every time you turn on the tap

All of our kitchen mixer taps save up to 40% water. They have a simple watersaving device that reduces the water flow (but without you noticing any difference).

People+Planet

All our kitchen mixer taps come with a water-saving device that automatically reduces the water you use by up to 40%. And you won’t notice any difference in the water pressure.

Saving water at every step

When you use an IKEA kitchen mixer tap, you're saving water thanks to an aerator that reduces flow while maintaining pressure. We didn't invent aerators, but think they are a good example of how we value water. It's one of Earth's most precious resources, yet very little of it is drinkable and even less is accessible. No organism can survive without it either. That's why we want to be good stewards of water at every step, whether in our factories or in your kitchen mixer tap.

What is brass?

Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.

Materials

Brass, Chrome-plated

Environment

By creating all our taps and showers in a way that helps people use less water and energy, we contribute to enabling a more sustainable life at home.

Energy rating

Type of mixer tap	Single-lever kitchen mixer tap
Max. flow rate at 3 bar	5.5 l/min (1.5 gpm)
Max. static pressure	10 bar (145.0 psi)
Tested up to a max. static pressure	16 bar (232.0 psi)
Min. working pressure	0.5 bar (7.25 psi)
Recommended working pressure	1-5 bar (14.5-72.5 psi)
Max. hot water temperature	80˚C (176˚F)
Recommended hot water temperature	60-65°C (140-150°F)
Recommended cold water temperature	10-15˚C (50-59˚F)
Connection hoses length	450 mm (17 3/4 '')
Hose connection size	G1/2"
Max. worktop thickness	50 mm (2'')
Mounting hole measurement	34-37 mm (1 3/8-1 7/16”)
Strainer included	No
Third party certified by	KC\|TISI\|BSMI

Care instructions

Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.

Assembly instructions/documents

Assembly instructions

LAGAN kit mx tp sing chrome-plated AP CN

Advice instructions

LAGAN kit mx tp sing chrome-plated AP CN

Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.

Store location

Find it in the store

Stock availability is updated every 30 minutes . Price and products in stores may be different from those online. There may be a delay in inventory update and stock availability is for reference only.

Onlineshopping
1 x LAGAN single-lever kitchen mixer tap Article no: 001.737.60 1 package(s)

1 package(s) total

Change store

Article no 001.737.60

Contain no harmful chemical substances

Mixer taps are lead-free to avoid secondary pollution (in compliance with R.O.C. CNS standards).
Equipped with a water-and-energy saving aerator that reduces water usage without sacrificing the water pressure.
Tested to ensure compliance with European mechanical, quality, safety and hygienic standards, including testing standards issued by KIWA in the Netherlands.
The scratch-resistant surface is designed to stand many years of use.
We offer a 10-year guarantee for many of our mixer taps.
